Coda

An eco-concious wristband and app capturing shared memories, extending the event experience beyond the music festival
COLLABORATORS: SAM RIERA
11 WEEKS
2023

RESEARCH

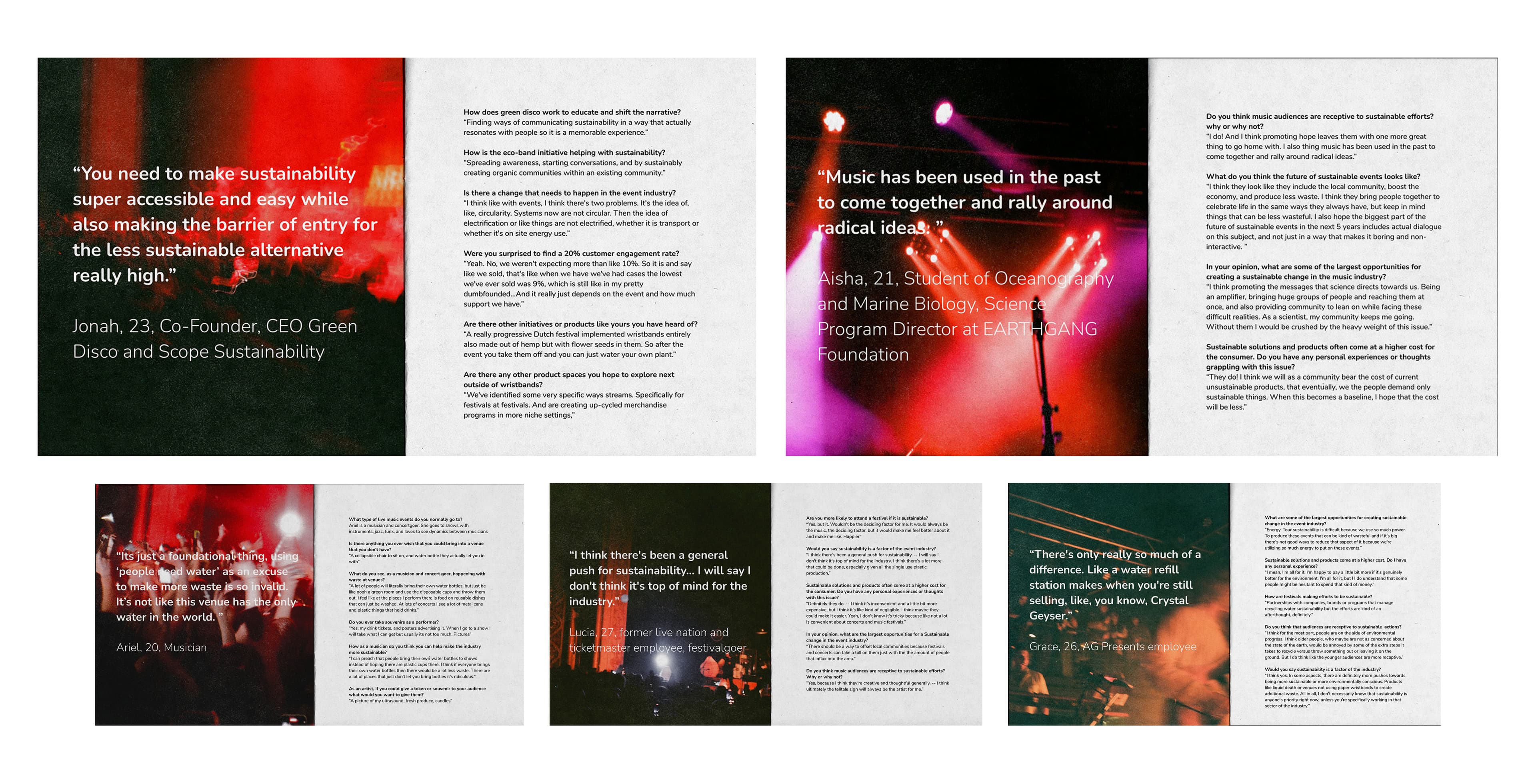

To approach designing a new product for the live music environment, we interviewed concert professionals, musicians, and concertgoers. Hearing their concert habits, opinions on sustainability and merchandise, and personal goals at live music events built a foundational understanding of the problem space. These interviews were often looked back on while designing.

Coda interviews

USER MAPPING

Empathy map

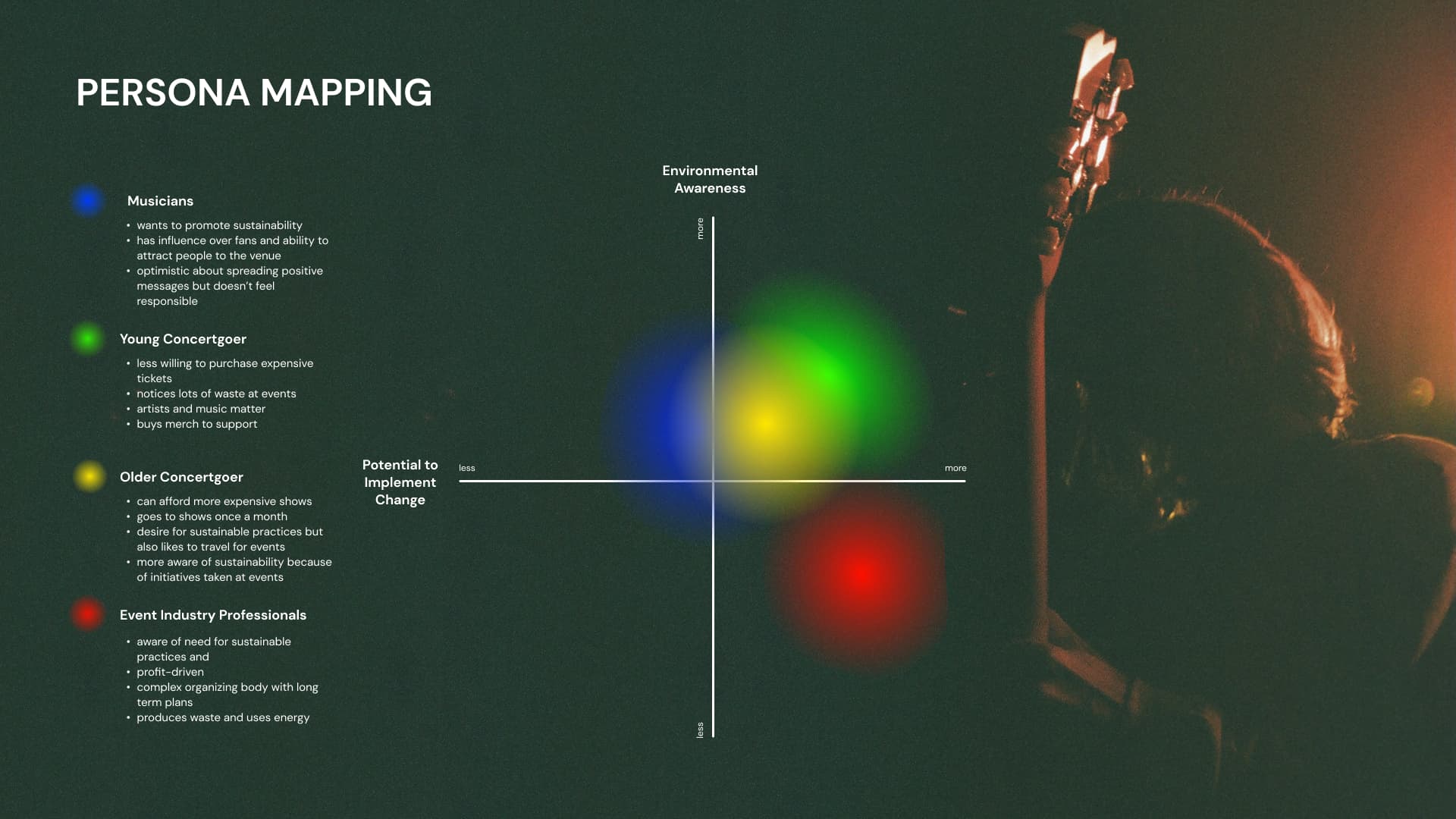

Persona Mapping

MOODBOARD

Compostable — Natural — Textured - Organic

moodboard

IDEATION

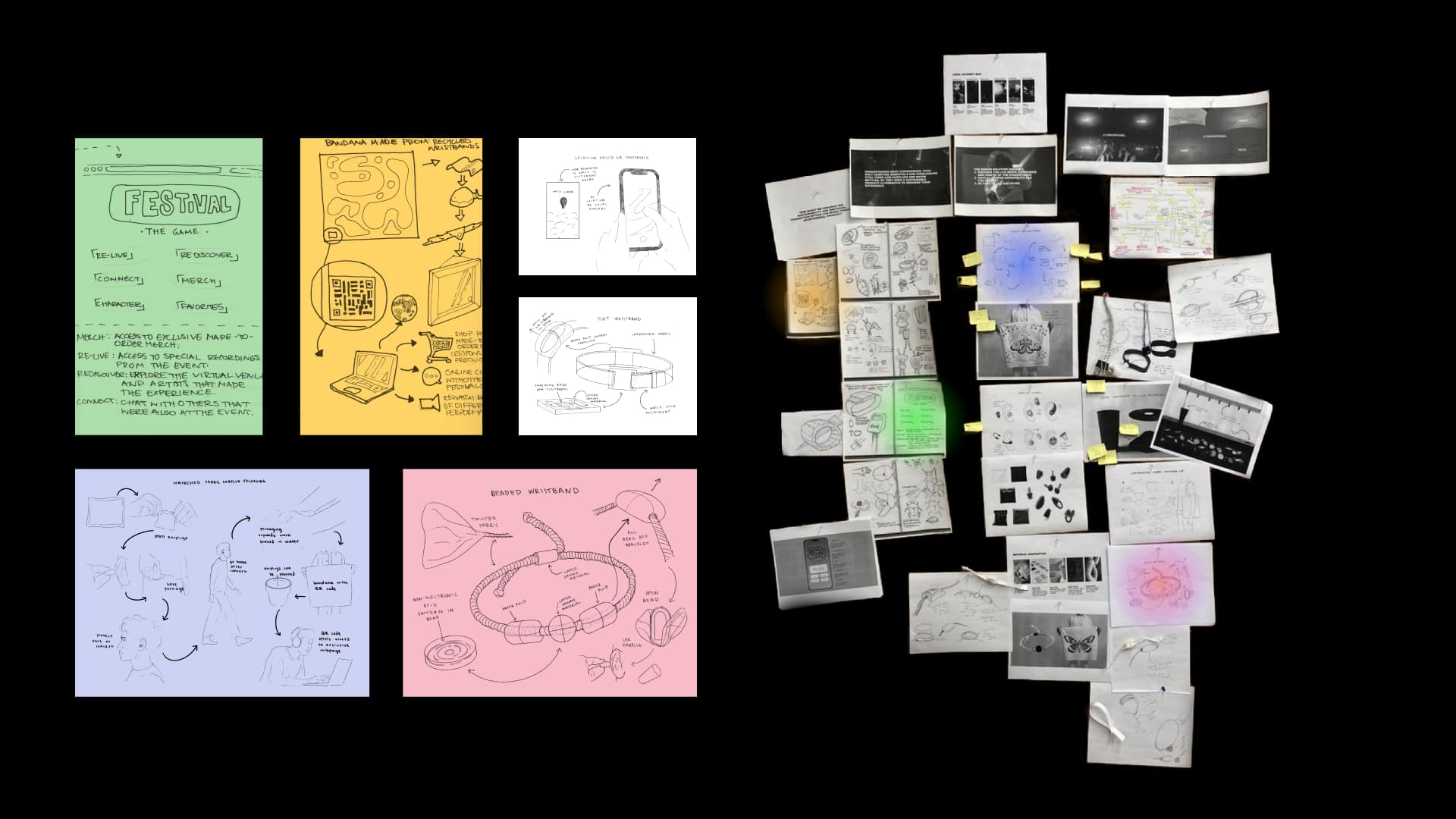

Ideation sketches

MATERIAL EXPLORATION

Since the beginning materials mattered. We focused on minimizing the product's footprint and planning an intentional lifecycle. We conducted physical experiments to figure out which material was best. We gathered drink waste material from surrounding cafes and breweries to test. All materials had to be biodegradable in order to not leave a lasting mark on the planet and promote sustainable thinking. We ended up choosing a hardened fiber pulp, beeswax, cotton, and a combination of coffee grounds and natural thickening agents as our materials to work with.

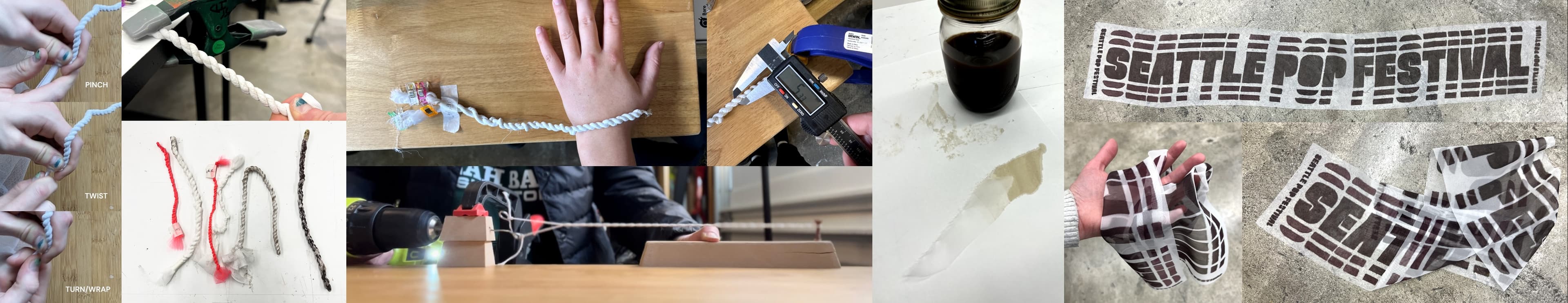

We experimented with various methods for creating a wristband with a singular piece of fabric. Since we wanted the wristband to unfold into a banana, we were focused on utilizing twisting to create a cord-like texture that would compress the fabric. We also experimented with natural dye processes and researched screen-printing with coffee.

experimenting with twisting methods and dyes

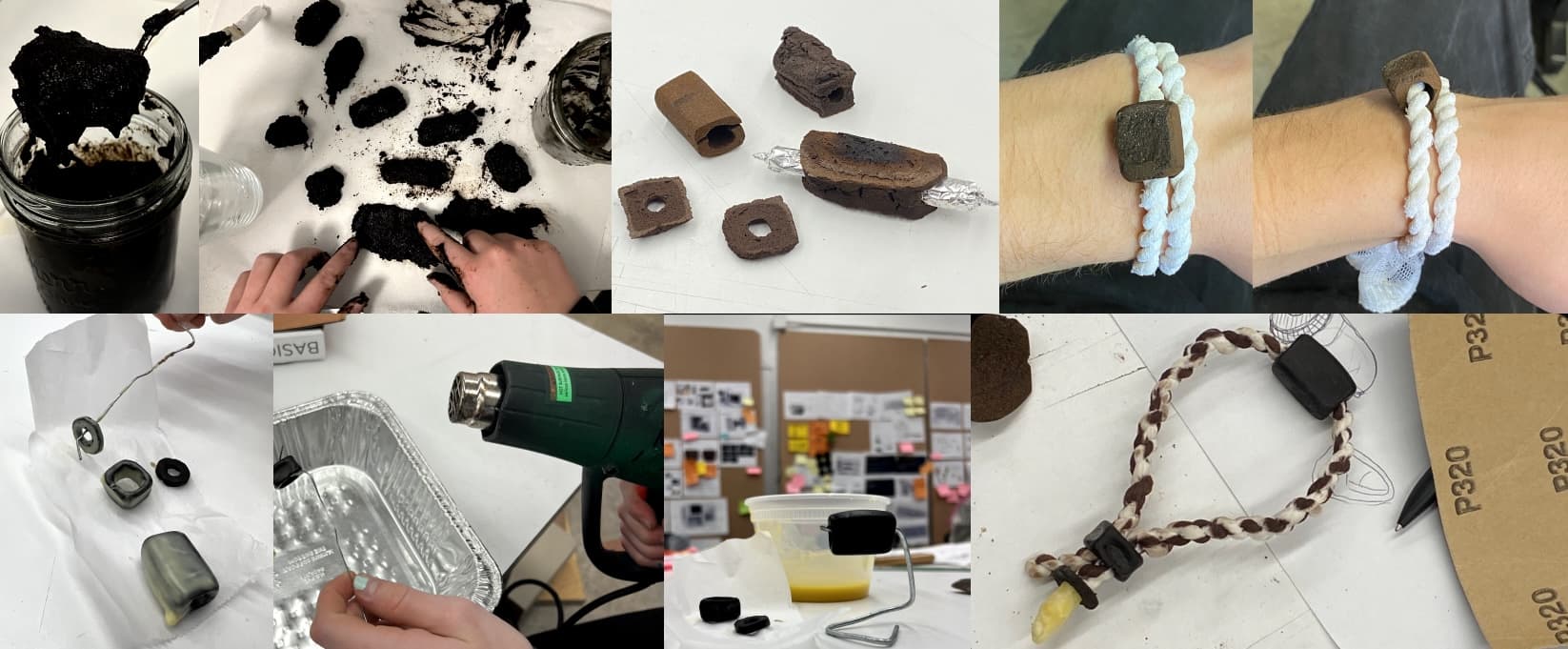

Coffee grounds were mixed in a recipe to create a material with a similar strength to reinforced concrete. The beads were polished with a coating of beeswax. To create the earplugs, both biofoam and beeswax were experimented with. The beeswax and cotton combination was more durable and allows users to shape their earplugs custom to their ears. We created a mold and paper pulp to create a shell for the earplugs, creating a removable bead.

experimenting with utilizing coffee ground materials

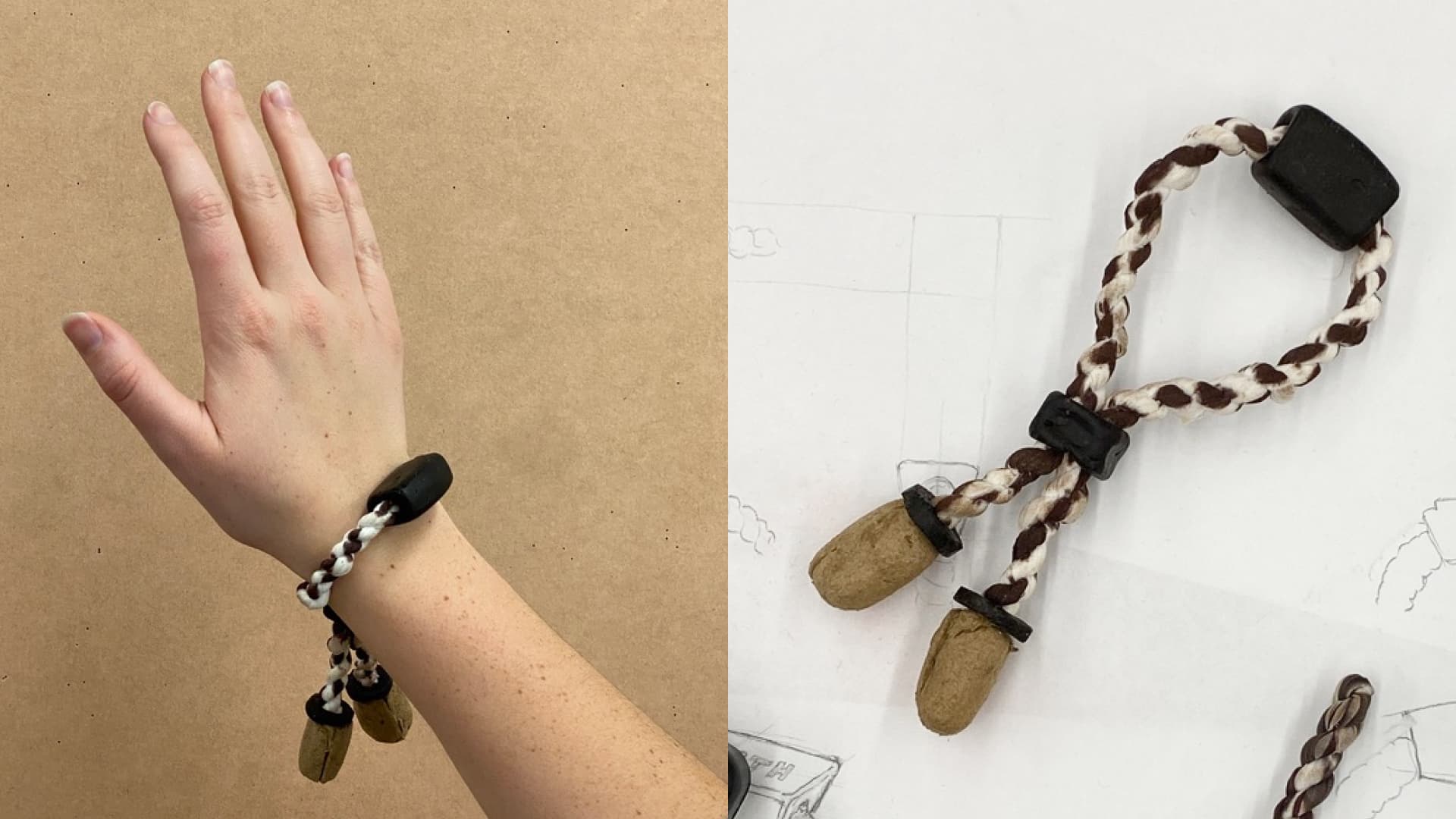

ROUGH MATERIAL PROTOTYPE

prototype

FINAL SOLUTION

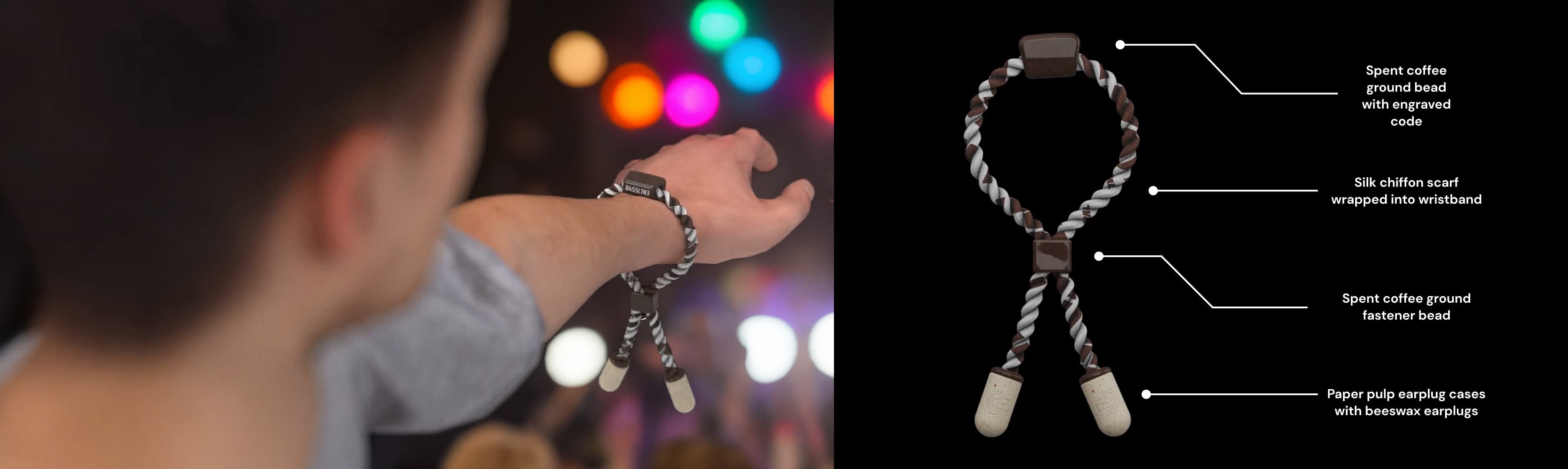

coda bracelet

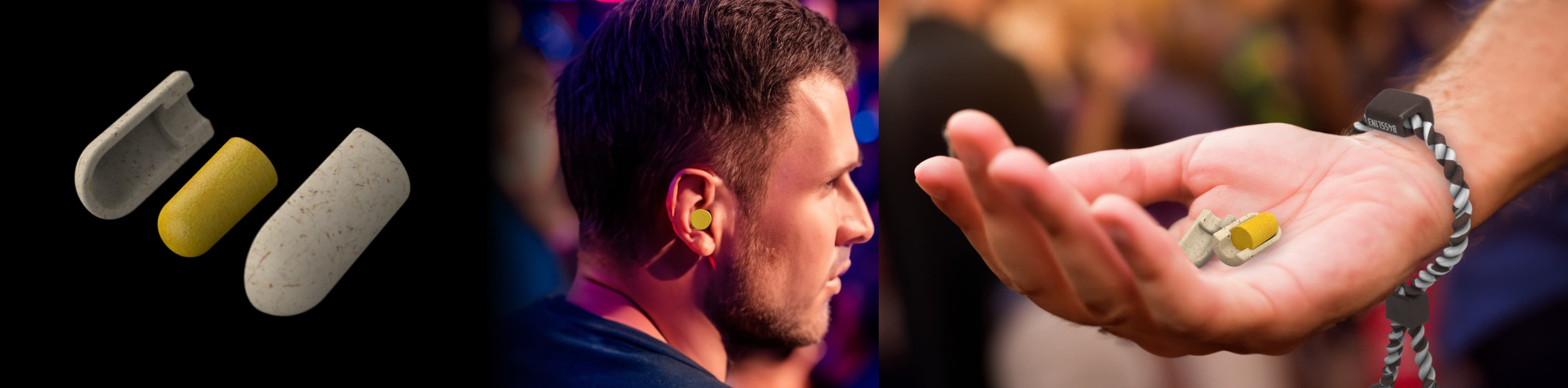

Removable earplugs protect concertgoer's ears.

earplugs

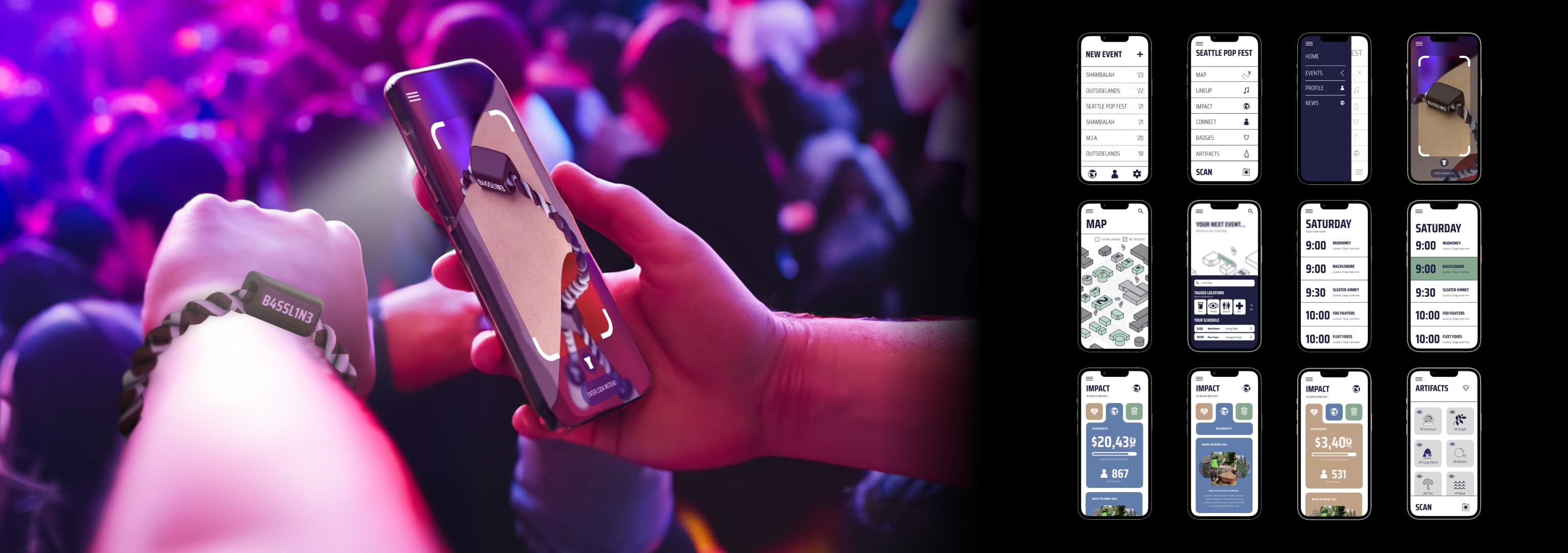

Personalized wristband code links to the app.

Bracelet connecting to the app experience

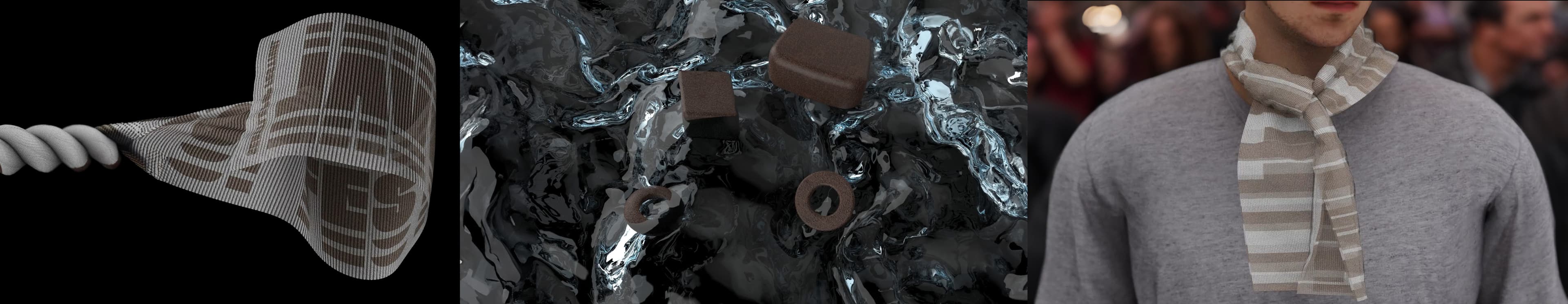

At home, the wristband untwists into a scarf and the coffee beads dissolve when soaked in water.

bracelet unraveling into a scarf
